Raspberry Pi · Manufacturer part number

CM4101008 — Compute Module 4, 1GB / 8GB eMMC / wireless

Also ordered as SC0692. iBuyXS holds 2,000 pieces in factory-sealed OEM packaging, 2024 date code, shipping from St. Petersburg, Florida, USA. Made in United Kingdom. Sold in full boxes of 250 (3.3 kg net / 3.6 kg gross), up to 2,000 pieces.

Request a quote

Holding CM4101008 yourself? We buy this part — free appraisal.

How much RAM and storage does the CM4101008 have?

1GB of LPDDR4 RAM and 8GB of onboard eMMC storage, plus wireless. The carton label prints it as "Raspberry Pi CM4 1GB 8GB WL". Note that DigiKey's attribute table lists the storage interface as MicroSD, which describes a CM4 Lite — CM4101008 is the eMMC version.

Is the CM4101008 discontinued?

No. Raspberry Pi has committed to producing the Compute Module 4 until at least January 2034. Authorized distributors show no stock and quote lead times of roughly 26 weeks, but that is allocation, not end-of-life.

Our stock, photographed

These are photographs of the actual inventory, not catalogue images. The carton label carries the manufacturer's own description — Raspberry Pi CM4 1GB 8GB WL — confirming 1GB RAM, 8GB eMMC and wireless.

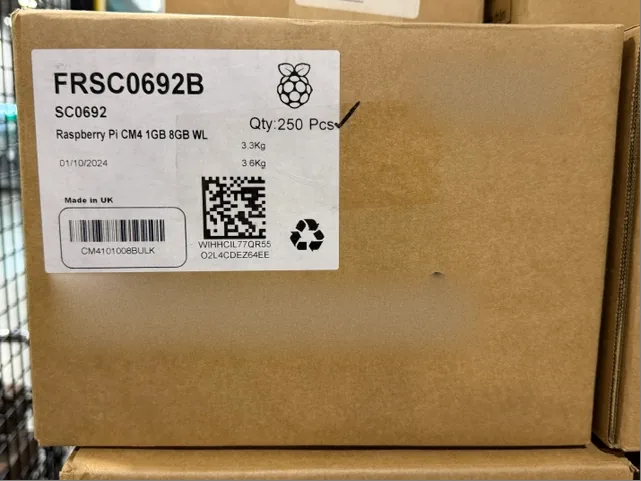

  • Factory-sealed OEM box of 250 Raspberry Pi CM4101008 Compute Module 4 units, manufacturer label reading SC0692, Raspberry Pi CM4 1GB 8GB WL, Qty 250 Pcs, Made in UK Factory-sealed OEM carton, 250 pieces, Made in UK.

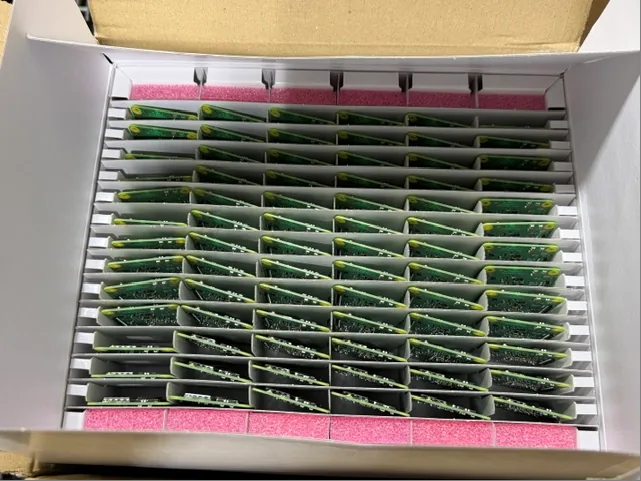

  • Open carton of Raspberry Pi CM4101008 Compute Module 4 units seated in anti-static trays Modules in original anti-static trays.

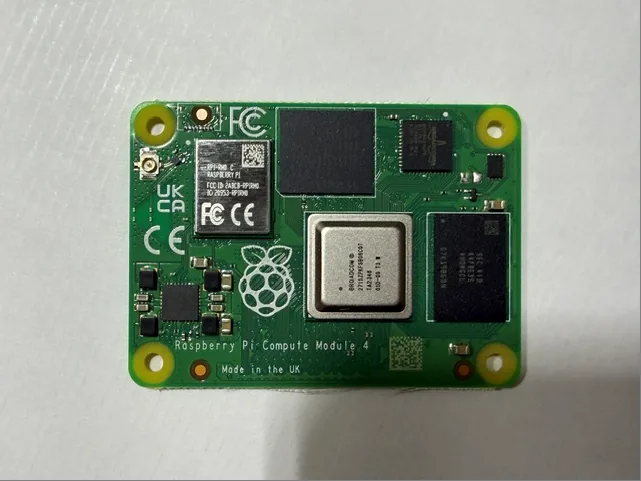

  • Top side of a Raspberry Pi CM4101008 Compute Module 4 showing the Broadcom BCM2711 processor, eMMC and wireless module Top side — BCM2711, eMMC and the wireless module.

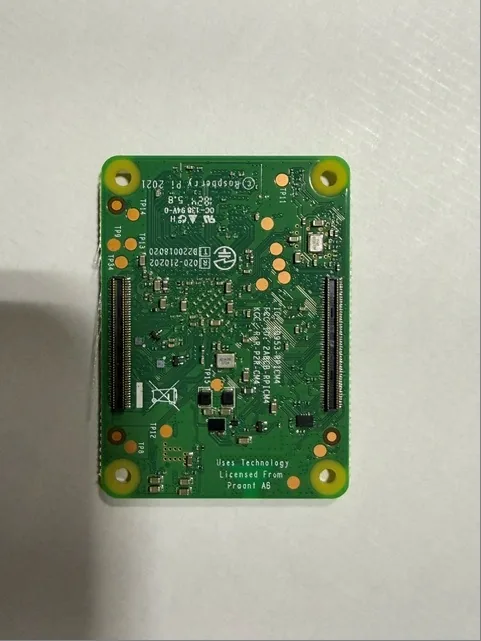

  • Underside of a Raspberry Pi CM4101008 Compute Module 4 showing the two 100-pin board-to-board connectors Underside — the two 100-pin board-to-board connectors.

Authorized channel status

Checked 12 September 2026 against authorized distribution.

DistributorStockFactory lead time
DigiKeyNo stock26 weeks
RSNo stock364 days
NewarkNo stock—

CM4101008 is not discontinued — Raspberry Pi states the Compute Module 4 remains in production until at least January 2034. The constraint is allocation and lead time, not obsolescence.

Specifications

ProcessorBroadcom BCM2711, quad-core ARM Cortex-A72
Clock speed1.5 GHz
RAM1GB LPDDR4
Onboard storage8GB eMMC
Wireless2.4 GHz / 5 GHz IEEE 802.11b/g/n/ac, Bluetooth 5.0
EthernetGigabit Ethernet
Video2x HDMI, 2x DSI, 2x CSI-2
ExpansionI2C, SPI, UART, 28 digital I/O
USBUSB 2.0 (1)
Dimensions55.0 mm x 40.0 mm
Operating temperature-20 °C to +85 °C, non-condensing
Country of originUnited Kingdom (Made in UK)
RoHS statusRoHS3 compliant
Moisture sensitivity levelNot applicable
ECCN5A992C
HTSUS8471.50.0150

Other part numbers for this part

CM4101008 is listed under several numbers across distributors and catalogues. All refer to the same part.

  • SC0692
  • SC0692B
  • CM4101008B
  • 2648-SC0692-ND
  • 40AJ6748
  • 62AK6474
  • 72164677
  • Q14220385
  • FRSC0692B
  • CM4101008BULK

Need a different quantity, or a related variant? Send us an RFQ or request a free appraisal — we work both sides of this market.
